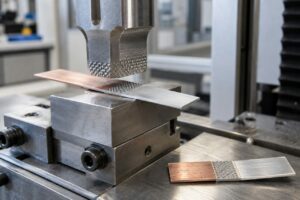

A sonotrode presses copper and aluminum foils against a machined anvil. The conductive tabs and joint zone remain visible. Pressure and vibration form a solid bond without molten metal. The workstation belongs to an industrial battery assembly shop.
